netsh端口转发 内网映射实例

netsh interface portproxy add v4tov4 listenport=监听端口 connectaddress=转发到的地址 connectport=转发到的端口

netsh interface portproxy add v4tov4 listenport=8888 connectaddress=192.168.56.3 connectport=6666

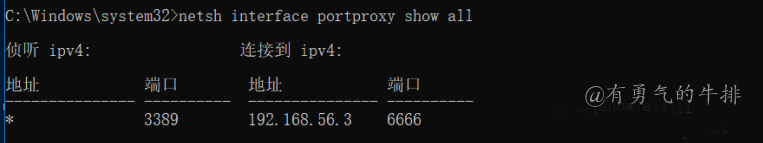

netsh interface portproxy show all

netsh interface portproxy delete v4tov4 listenport=3389

netsh interface portproxy add v4tov4 listenaddress=0.0.0.0 listenport=80 connectaddress=192.168.56.6 connectport=8888

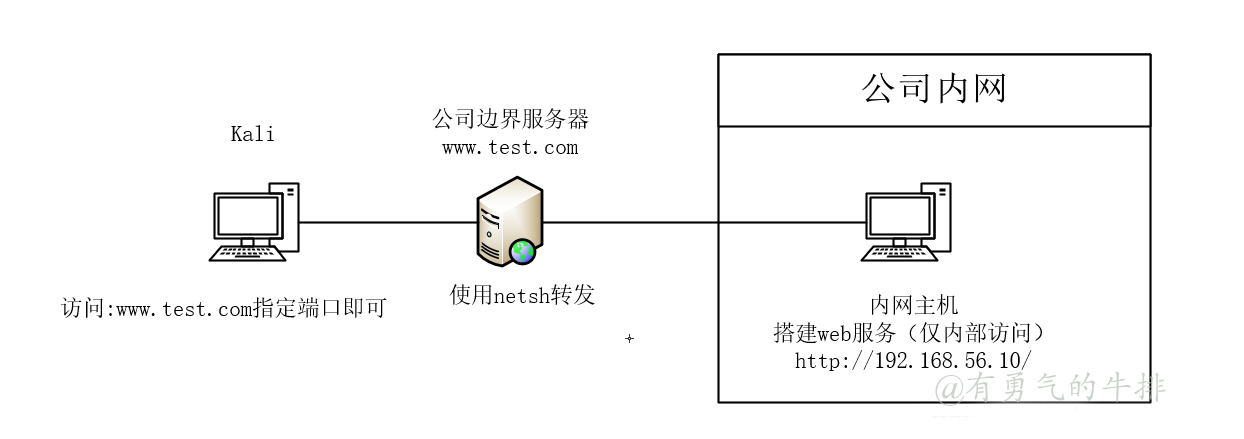

<h2><a id="1__0"></a>1 基本使用</h2> <h3><a id="11__2"></a>1.1 新增端口转发</h3> <pre><code class="lang-">netsh interface portproxy add v4tov4 listenport=监听端口 connectaddress=转发到的地址 connectport=转发到的端口 </code></pre> <p>eg</p> <pre><code class="lang-">netsh interface portproxy add v4tov4 listenport=8888 connectaddress=192.168.56.3 connectport=6666 </code></pre> <h3><a id="12__16"></a>1.2 查看转发了哪些端口</h3> <pre><code class="lang-">netsh interface portproxy show all </code></pre> <p><img src="https://static.couragesteak.com/article/c51d6cce1e352610d5062454cd08bc0f.png" alt="netsh查看转发了哪些端口" /></p> <h3><a id="13__26"></a>1.3 删除转发规则</h3> <pre><code class="lang-">netsh interface portproxy delete v4tov4 listenport=3389 </code></pre> <h2><a id="2__34"></a>2 内网映射实例</h2> <pre><code class="lang-powershell">netsh interface portproxy add v4tov4 listenaddress=0.0.0.0 listenport=80 connectaddress=192.168.56.6 connectport=8888 </code></pre> <ul> <li>listenaddress：监听地址，0.0.0.0表示监听所有地址，建议用0.0.0.0</li> <li>listenport：本机对外开放端口</li> <li>connectaddress：要转发的主机ip</li> <li>connectport：要转发的主机端口</li> </ul> <p><img src="https://static.couragesteak.com/article/7951d1424db761674a67be1288405f28.png" alt="netsh内网映射实例" /></p>
